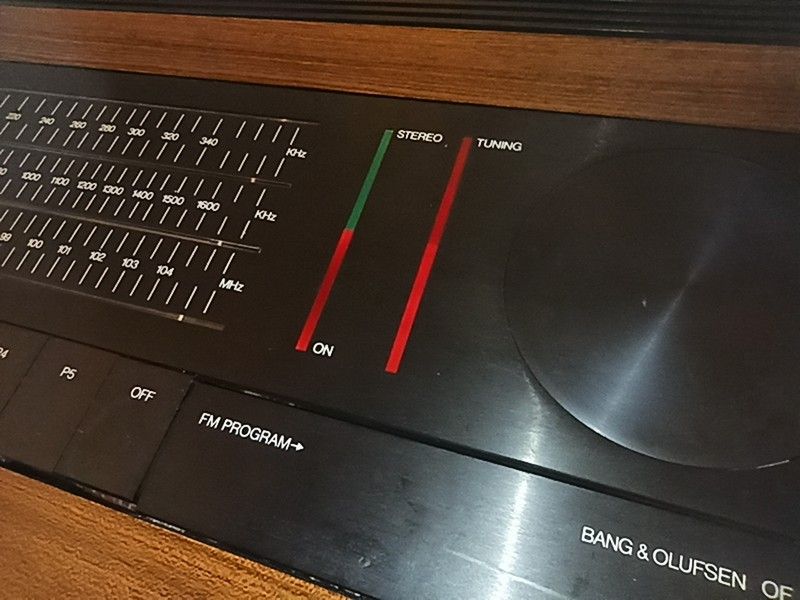

Beomaster 2000, 3400 (1970's)

Beomaster 2000, 3400 (1970's)

Spareparts for Beomaster 2000 and 3400. If you can't find the part you are looking for then please send a request through the contact form.

Service hints:

The 100 mA lamp is used for the main frequency scale. When removing the old lamp; use a 5 mm drill to manually clear the holder to fit the new lamp. The other four lamps are in serie with the main lamp and shall only be replaced with 40 mA lamps. Please check that the 26V is ok before changing lamps to ensure that the new lamps won't be damaged.

The amplifier shall be tuned to 10mV according to the service manual.
